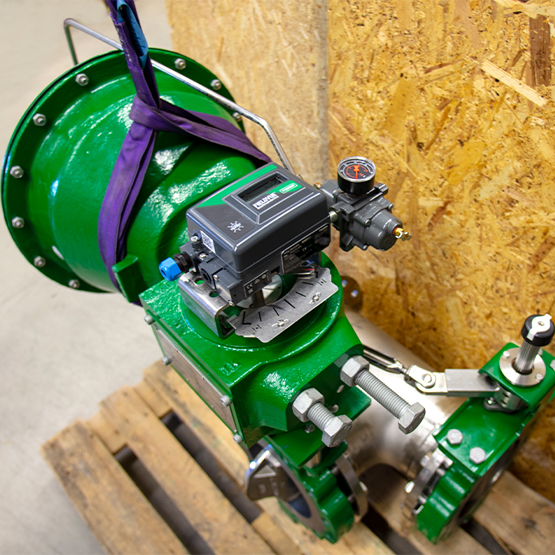

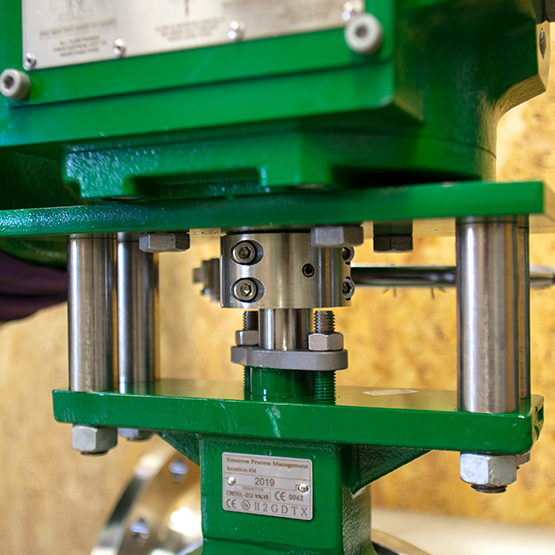

A customer contacted Askalon for a quote on a 3-way valve to control the flow of hot water from a boiler, via a heat exchanger. Askalon was able to propose a customer specific solution using two DN200 PN16 Fisher™ Control-Disk™ high performance butterfly valves operated by one pneumatic actuator and a tandem linkage. Thanks to Askalon having its own Engineering department and workshop we could make significant improvement in both price and delivery time compared to competitors.
The whole assembly comes mounted and turnkey tested to a T-piece pipe with flanges including hydrotest and 3.1 material certificates according to PED. It has a 4-20 mA Fisher FIELDVUE™ DVC2000 digital valve controller with integrated limit switches and 4-20 mA position transmitter.

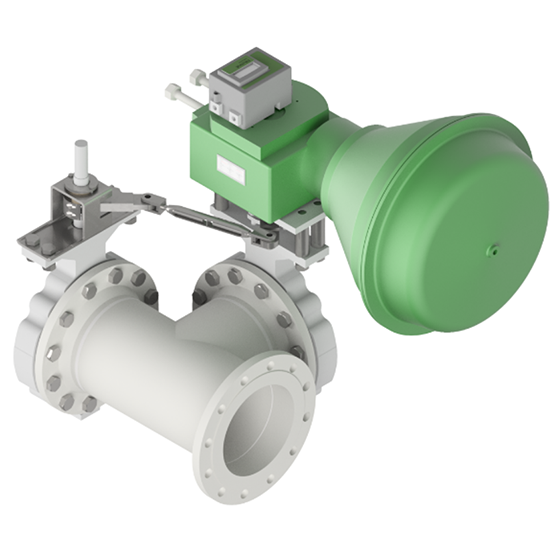

Askalon can also provide 3D CAD drawings when needed.
